NGINX Prometheus exporter

Installation of NGINX Prometheus Exporter in production environment consists from following high level steps:

Install exporter;
Configure authentication;
Configure firewall;
Configure service for autostart and restart;
Check access to exporter from I&B monitoring platform.

1. Install NGINX Prometheus Exporter.

Check latest version, available platforms of NGINX Prometheus Exporter GitHub page and make necessary changes in variables on next step.
Prepare environment variables to simplify installation and configuration process.

Bash

export EXPORTER_VERSION=1.5.0
export EXPORTER_PLATFORM=linux_amd64

Download exporter

Bash

wget https://github.com/nginx/nginx-prometheus-exporter/releases/\
download/v$EXPORTER_VERSION/nginx-prometheus-exporter_"$EXPORTER_VERSION"_"$EXPORTER_PLATFORM".tar.gz

Create directory /usr/local/bin/nginx_exporter and untar exporter into it.

Bash

sudo mkdir -p /usr/local/bin/nginx_exporter
sudo tar xvfz nginx-prometheus-exporter_"$EXPORTER_VERSION"_"$EXPORTER_PLATFORM".tar.gz -C /usr/local/bin/nginx_exporter

Create prometheus user. If it already exist - go to step 6.

Fedora (RHEL, CentOS)

Bash

sudo useradd -M -s /sbin/nologin prometheus

-M (or --no-create-home): This option prevents the creation of a home directory for the new user;
-s /sbin/nologin: This option sets the user's login shell to /sbin/nologin. This effectively prevents the user from interactively logging into the system. While the user won't have a password set, this further ensures they cannot log in.

Debian (Ubuntu)

Bash

sudo useradd -s /sbin/nologin prometheus --no-create-home

Make prometheus user owner of nginx_exporter directory

Bash

sudo chown -hR prometheus:prometheus /usr/local/bin/nginx_exporter

2. Configure firewall

Configure firewall on resource

NGINX Prometheus Exporter uses default port 9113, so allow it in firewall on resource.

Fedora (RHEL, CentOS)

Bash

sudo firewall-cmd --zone=public --add-port=9113/tcp --permanent
sudo systemctl reload firewalld

Check firewall configuration

Bash

sudo firewall-cmd --list-all

You should see in output:

Bash

ports: 9113/tcp

Debian (Ubuntu)

Bash

sudo ufw allow 9113

You should see in output:

Bash

Rules updated
Rules updated (v6)

Check firewall configuration

Bash

sudo ufw status

You should see in output:

Bash

To                             Action          From
--                             ------          ----
9113                           ALLOW           Anywhere

3. Configure authentication for exporter

Do the steps described in Exporters configuration → Authentication section.

4. Check configuration

To enable metrics expose you need to enable the stub status, you need to configure it in your NGINX configuration file. Below is an example:

Bash

location /stub_status {
stub_status;
allow 127.0.0.1; # Allow access only from localhost or your exporter host IP
deny all; # Deny access from other hosts
}

Run nginx_exporter

Bash

/usr/local/bin/nginx_exporter/nginx-prometheus-exporter  --nginx.scrape-uri=https://127.0.0.1:443/stub_status \
--web.config.file=/usr/local/bin/nginx_exporter/web-config.yml

In this string --nginx.scrape-uri=https://127.0.0.1:443/stub_status, 127.0.0.1:443 this is ip:port of your nginx, --web.config.file=/usr/local/bin/nginx_exporter/web-config.yml sets path to your web-config file,

In output you should see:

Bash

... msg="TLS is enabled." ...

Check with browser if it is accessible at:

https://resource-hostname-or-ip:9113/metrics

After entering exporter’s user name and password you should see page like this:

Bash

# HELP go_gc_duration_seconds A summary of the wall-time pause (stop-the-world) duration in garbage collection cycles.
# TYPE go_gc_duration_seconds summary
go_gc_duration_seconds{quantile="0"} 0
...

Stop nginx exporter with Ctrl-c in terminal where you run it.

Make nginx_exporter service for autostart and restart.

Create file with your preferred text editor, for example nano …

Bash

sudo nano /etc/systemd/system/nginx_exporter.service

… and paste following text into it.

Bash

[Unit]
Description=nginx Exporter

[Service]
User=prometheus
ExecStart=/usr/local/bin/nginx_exporter/nginx-prometheus-exporter  --nginx.scrape-uri=https://127.0.0.1:443/stub_status --web.config.file=/usr/local/bin/nginx_exporter/web-config.yml

[Install]
WantedBy=multi-user.target

Save file and exit editor.

Start service …

Bash

sudo systemctl daemon-reload
sudo systemctl start nginx_exporter
sudo systemctl enable nginx_exporter

… and check

Bash

sudo systemctl status nginx_exporter

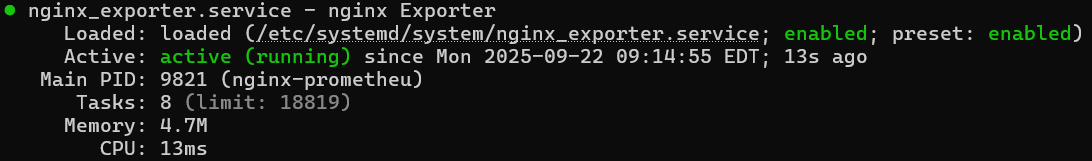

You should see following output similar to:

In case of any problem, you should view log entries for service:

Bash

journalctl -u nginx_exporter.service -e

Now NGINX Prometheus Exporter is ready to accept data and then expose it to Prometheus.
